Draw frames DF1 - DFR1
High productivity with low operational costs
The DF1 and DFR1 draw frames are designed to deliver top yarn quality while maximizing productivity. Capable of reaching high speeds, these machines feature exceptional reliability, high flexibility, and low operational costs. The DFR1 includes an advanced autoleveller system for precise control, making both models essential for modern, high-performance spinning mills.
Machine features
Production speed: Up to 1,000 m/min
New drafting unit: 3-over-3 drafting
Lubricated-for-life bearings: 42 mm unified top rollers
Electronic draft adjustment via independent motors
Coiler featuring an innovative design to avoid dust and fiber buildup inside the tube
Customized suction system for efficient fiber and dust removal
Automatic and reliable can change
T&G Measuring Unit: real-time sliver mass correction
High productivity with smart technology
Thanks to high-efficiency servomotors, an innovative pneumatic drafting head, and touch screen-controlled electronic drafting, the DF1/DFR1 ensures high-speed production with low energy usage and minimal maintenance. The DFR1 further enhances consistency with its advanced autolevelling system.
Outstanding sliver quality & flexibility

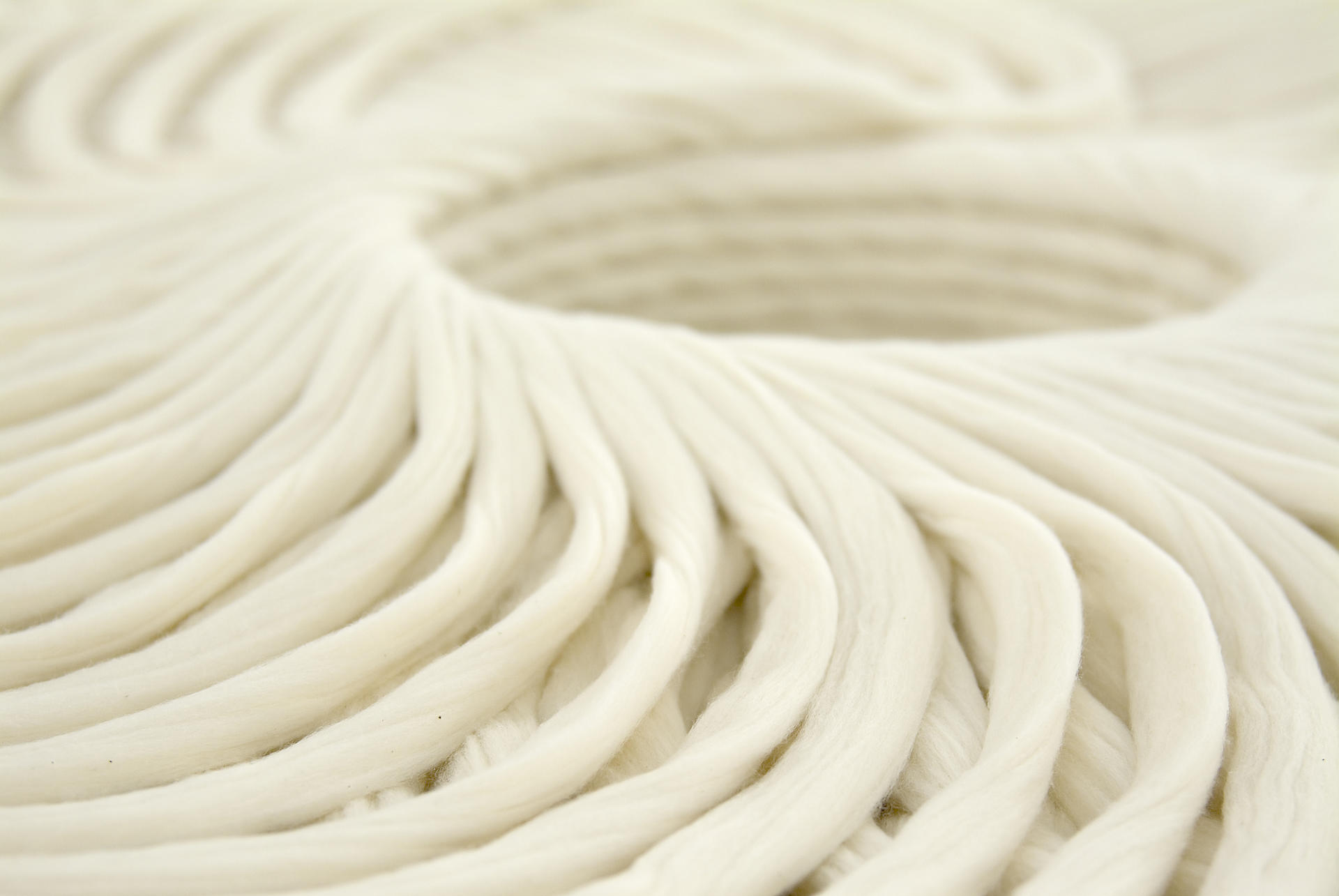

The innovative drafting geometry and precision measuring systems ensure superior fiber control, less sliver breakage, and excellent sliver uniformity. The machine easily adapts to different fiber types and configurations, providing flexibility across production needs.
Technical specifications
| Design | DF1 - without autoleveller DFR1 - with autoleveller |
| Delivery heads | One |
| Material | Cotton, man made fibers and blends with a staple length up to 80 mm |
| Delivery speed | Up to 1,000 m/min (production speed) |
| Feeding | Power Creel 6 or 8 fold doublings Double row (VAC) |
| Sliver count processed | Feed count 20 - 50 ktex (20 - 50 g/m) Delivery count 1.25 - 8.0 ktex (0.47 - 0.07 Ne) |
| Draft | 4 to 10 fold |
| Drafting system | 3 over 3, pneumatic loading + 1 guidance roller |
| Can sizes | Round cans with diameter 18” to 40” (457 to 1,016 mm) |
| Technological air | 1,000 m³/h |
